Rederiet Limfjorden ApS

Rederiet Limfjorden ApS owns a fleet of tugboats and workboats. The company is used to operate in the Port of Thyboron with the tugboats Gitte Vig and Goliath Vig with a 30 t bollard pull.

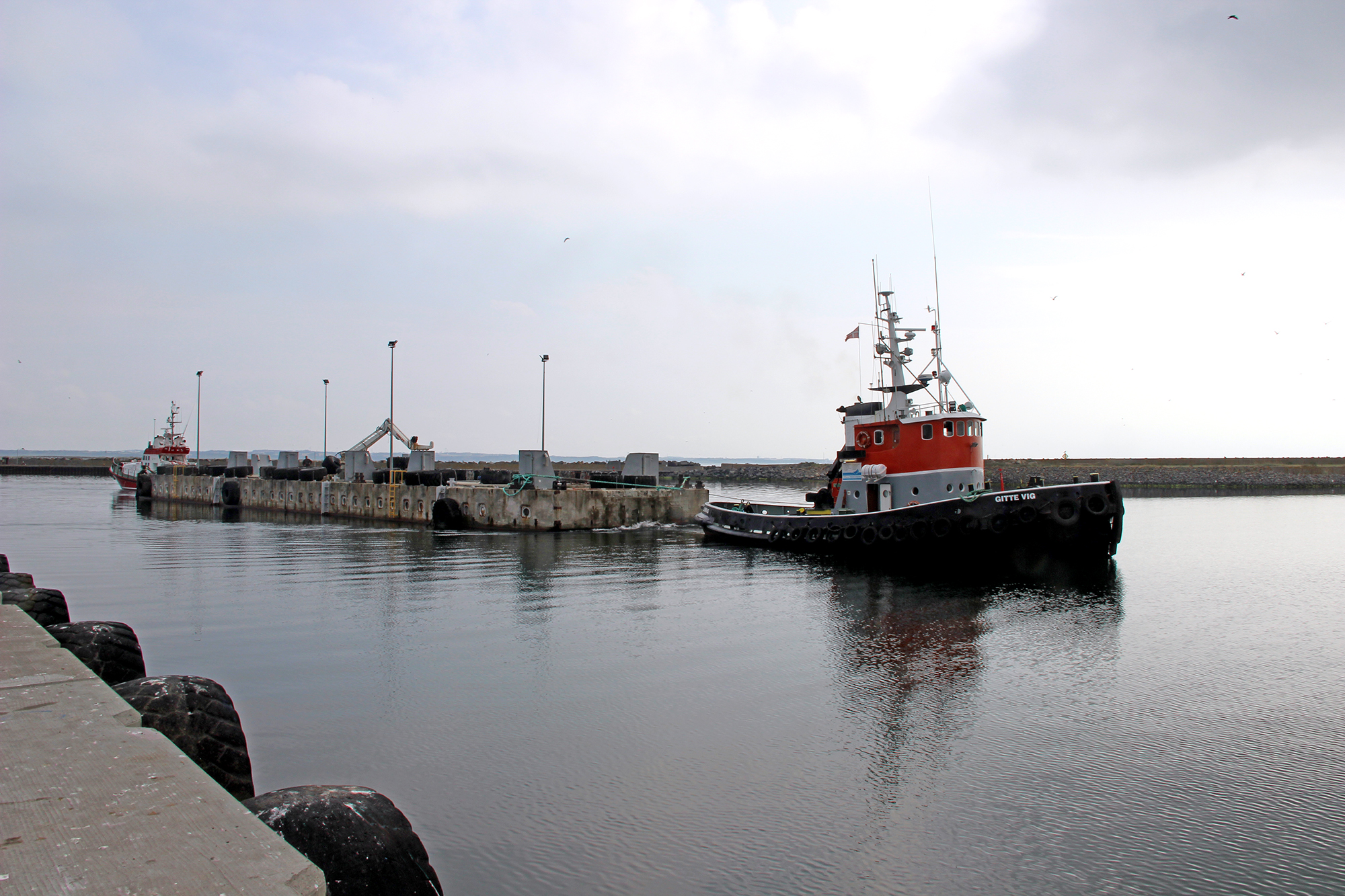

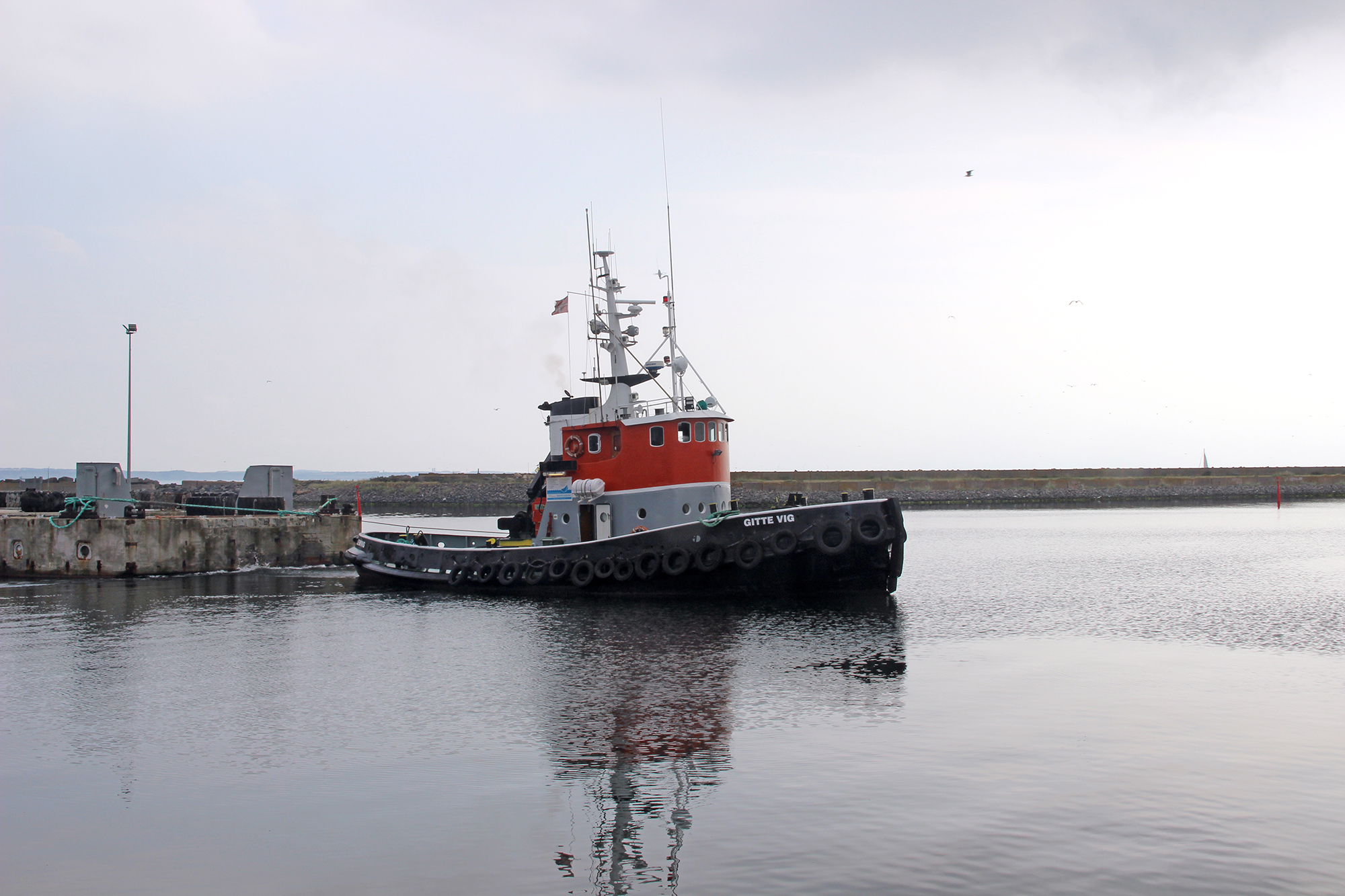

Gitte Vig

Tugboat

Dimensions:
Length 20.7 m
Beam 6.6 m
Draft 3.3 m
Tonnage: 74 Gt

Main engine: Bergen Diesel 650 hp/465 kW
Auxiliary: Deutz & Yanmar

Bollard pull: 10,5 t

Fuel tank capacity: 11.500 L
Water tank capacity 8.500 L
Propulsion: Single screw + bow thruster, 100 hp

Towing winch: 400 m x 28 mm wire, 10 t
Anchor winch: 2 x 250 m wire
Deck crane: Palfinger 5 tm

Rederiet Limfjorden 8007 Web

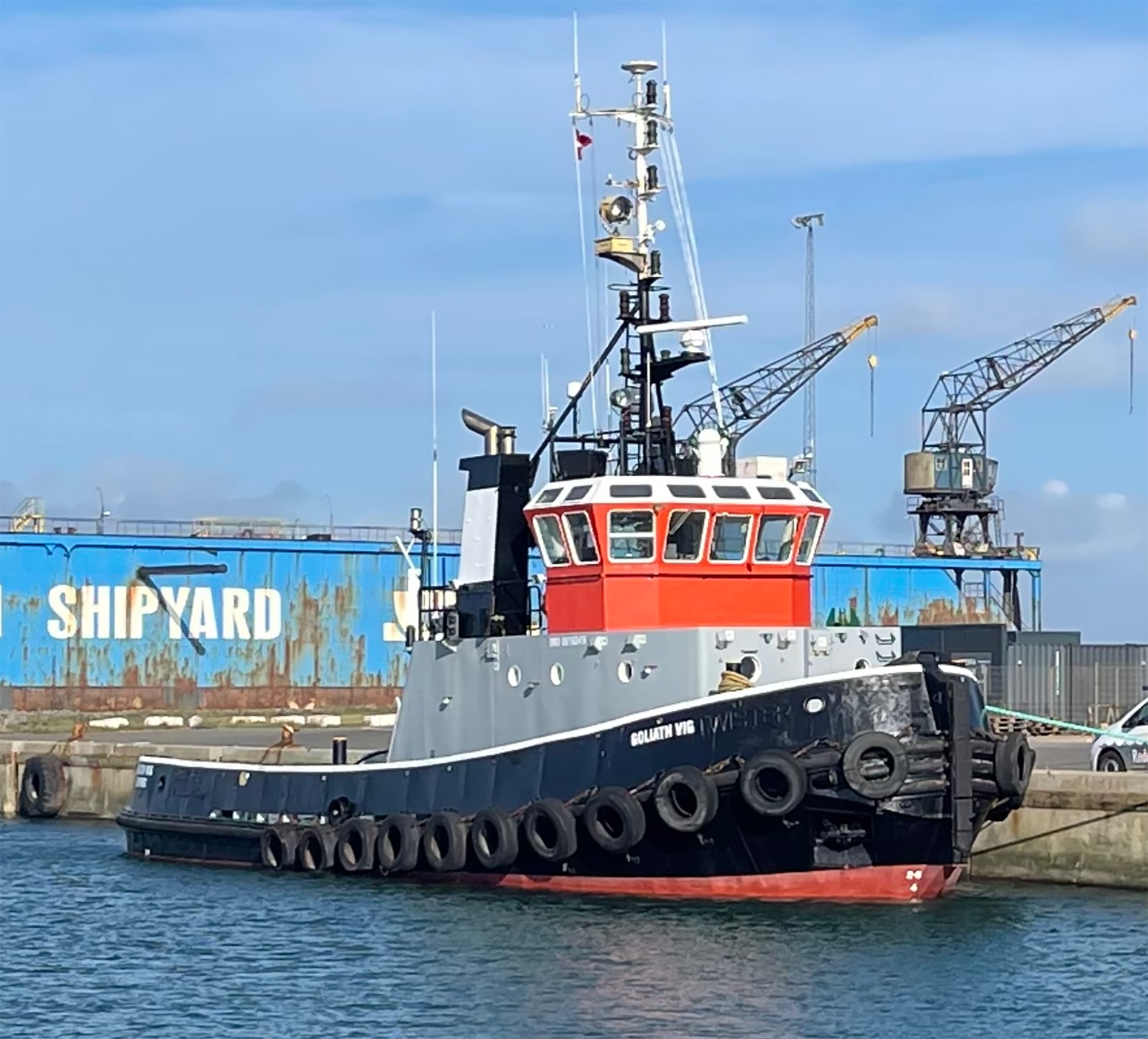

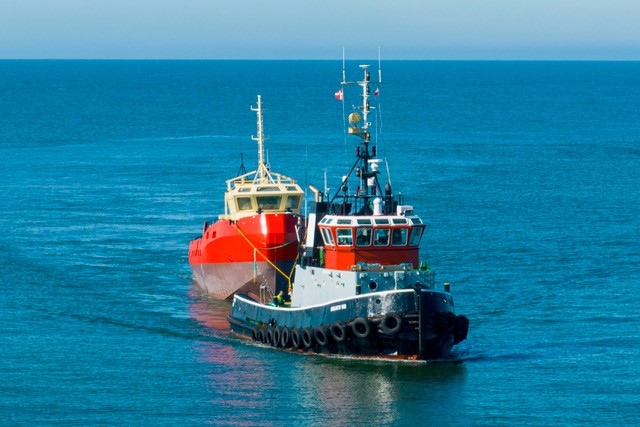

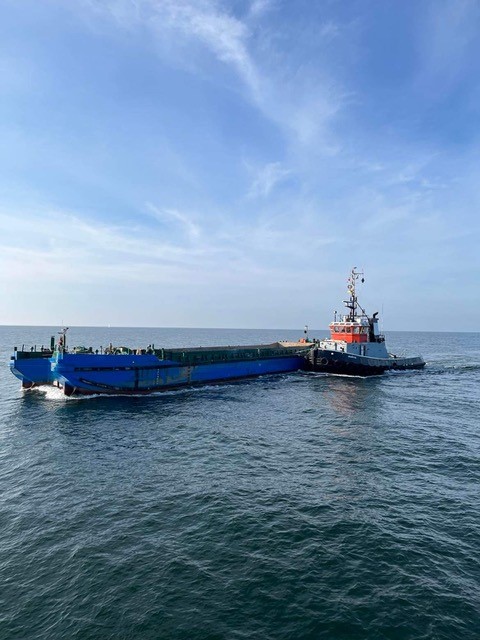

Goliath Vig

Tugboat

Class: LR+100A1+LMC UMS
Call sign: OZFN2
IMO no.: 8616245

Dimensions:
Loa 24.7 m
Beam 7.30 m,
Draught 3.30 – 3,60 m
Tonnage: 173 Gt
Main engines: 2 x 1050 Hk (Total 1400 kw) Ruston 6 AP 230 M
Auxiliary: 2 x 80 kw Volvo TD 70 CHC
Bollard pull: 30,5 t
Fuel tank capacity: 38000 L
Fresh water tank capacity: 18000 L
Propulsion: Twin screw in nozzle – Dia. 2,20 m- 2 rudder
Twin drum towing winch: 1 x 500 m 34 mm / 1 x 200 m 32 mm wire
Capstan: 5 ton pull
Deck crane: Heila HLM18-2S

1 Radar
AIS
ARPA
2 VHF
Autopilot

Echo sounder
1 navigator
Navtex
Satellite compass
Electronic Sea Charts

Acommondation: 7 persons
