Nordsoekaj 15A3806 Web

Nordsøkaj

Quay 900, 901, 1021, 1022, 1023

Fishing vessels receive maritime services on Nordsøkaj

The Nordsøkaj quay specialises in maritime services for fishing vessels. There is ample space to inspect the trawl while the vessel is in port, and the long concrete section parallel to the quay is designed to handle heavy crane lifting. Fishing vessels can have engine and hydraulic parts replaced, and there is ample space to work without disruption along the quay. The quay can also be used as a layover quay for fishing vessels, both within and outside the fishing season.

There is easy access to supplies along the entire quay, and to ship waste and slop oil disposal. The quay is also located at the feet of major maritime service companies such as Nordsøtrawl, Egersund and Vest-EL.

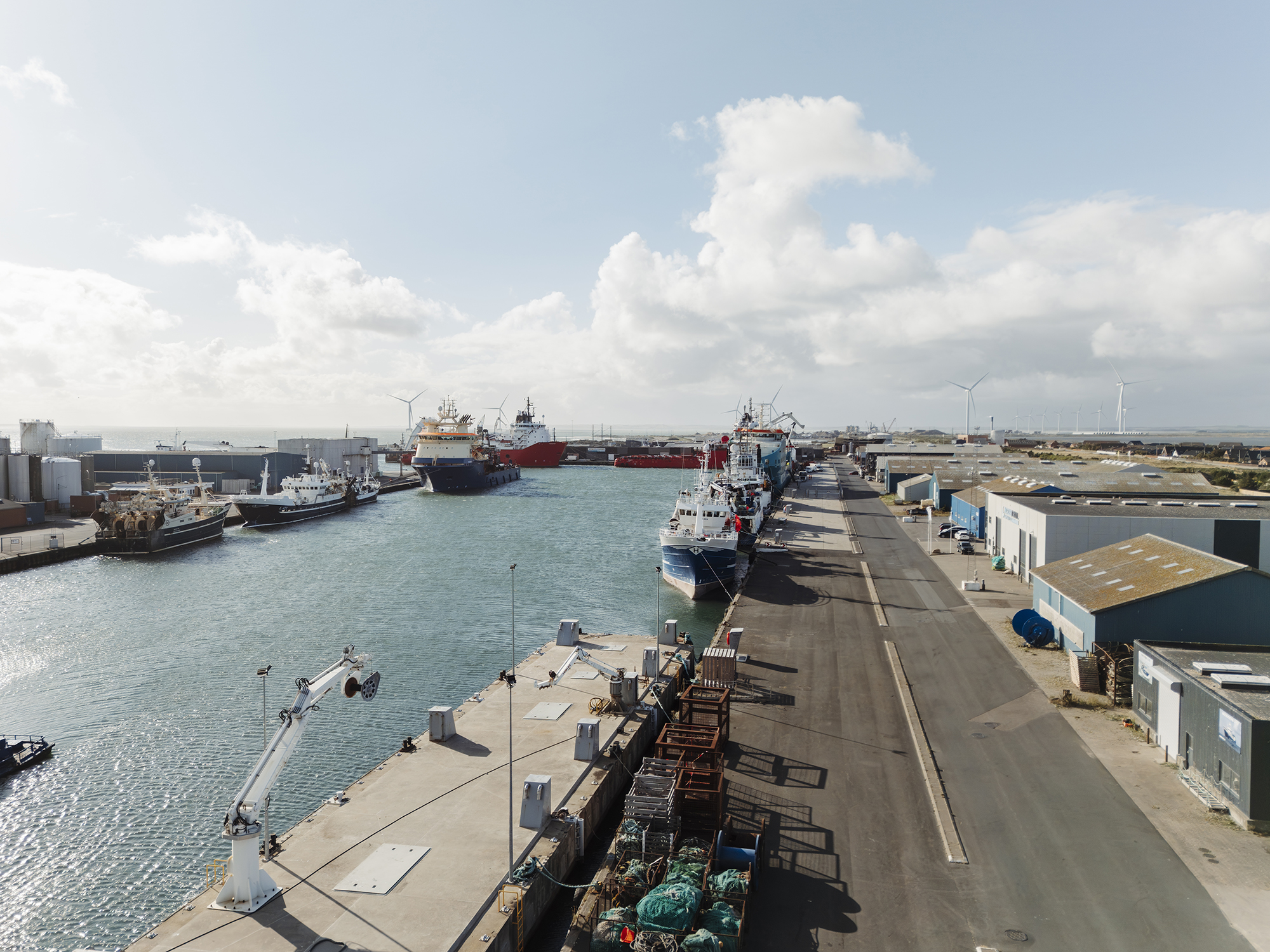

Long quay with plenty of space

There is lots of space on the 400-metre-long Nordsøkaj. Industrial fishing vessels for pelagic and sand eel fishing can berth safely here. There is also easy access to maritime services at the quay.

Nordsoekaj 0016 Web

Trawl-stretching facilities on Nordsøkaj

Having a berth where the trawl can be inspected while the fishing vessel is in port makes a big difference, especially in the early summer months when industrial fishing is at its peak.

When fishing equipment has suffered damage, a rapid response from skilled seine and net makers can make a big difference. And they are based right on Nordsøkaj.

Trawl Maintenance Repair 3572 Web

Easy access to power supplies

You can operate the power stands at the Port of Thyboron yourself as soon as you have registered as a user. There is power to suit different needs, with capacities of up to 125 amps.

El forsyning
Nordsoekaj 15A3749 Web

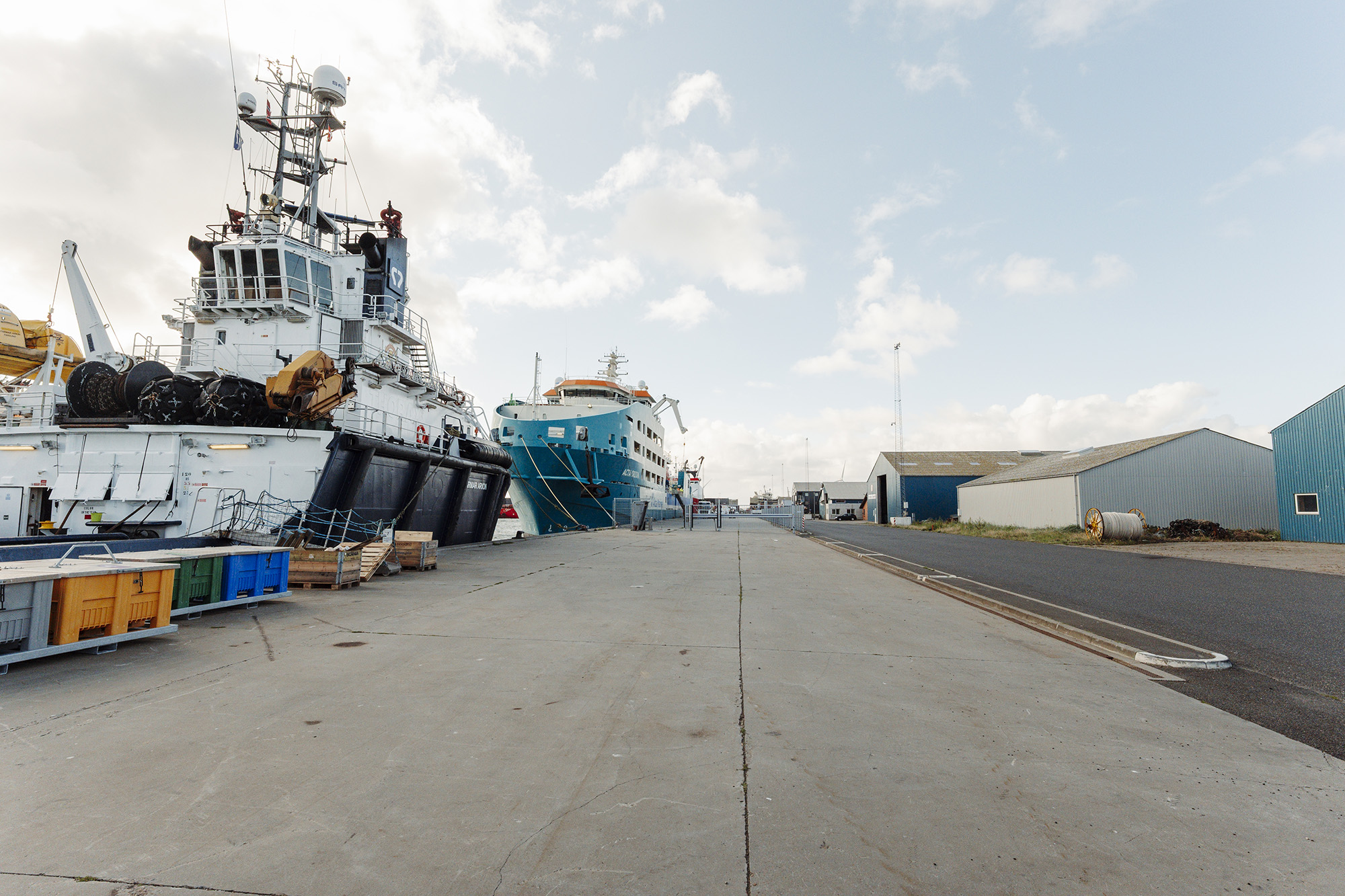

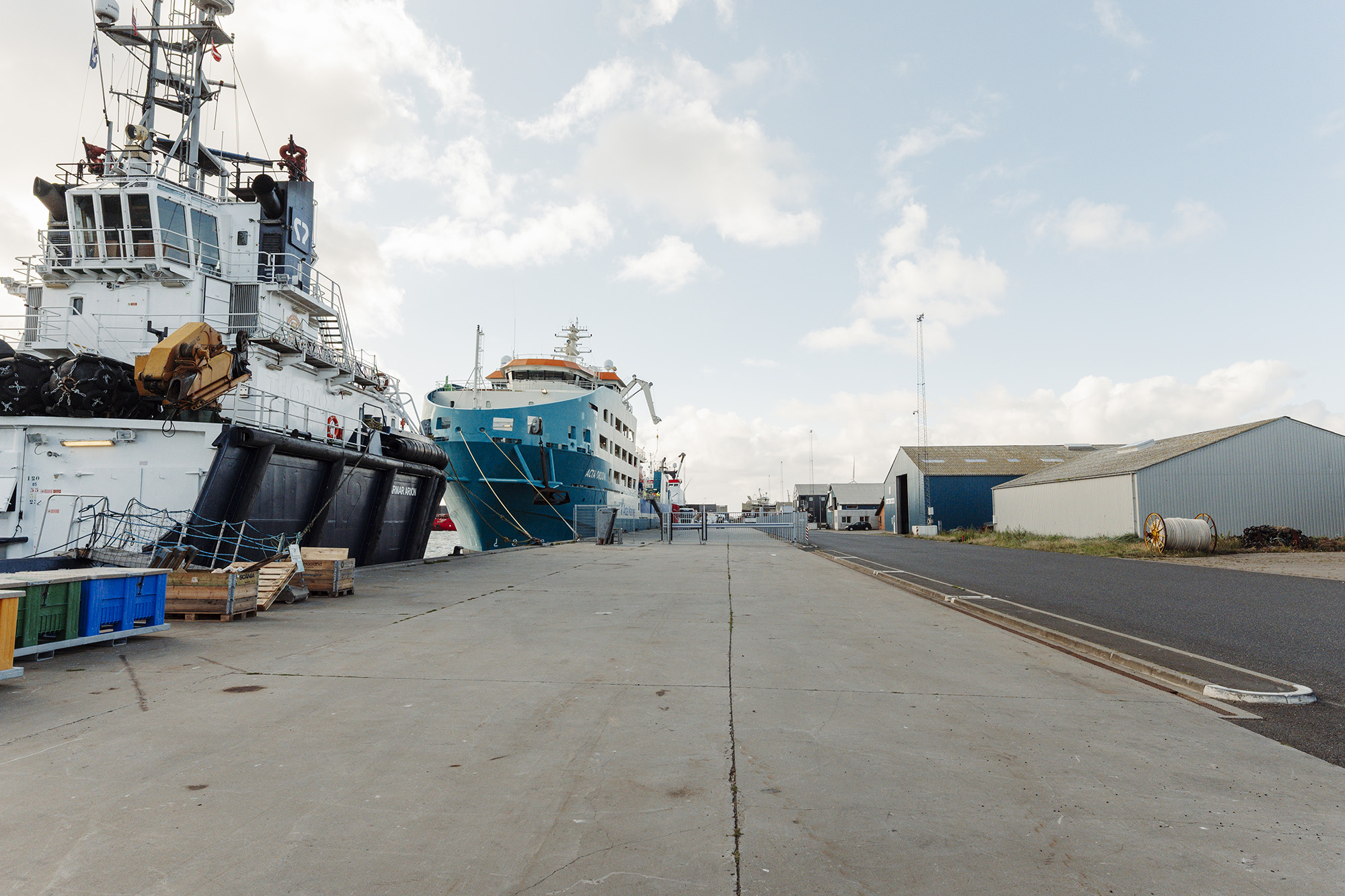

Concrete for heavy lifting and undisrupted work

Nordsøkaj has a strong concrete section on the quay for maritime services and ship repair. Cranes can lift heavy winches and ship engines on board from this area if the fishing vessel needs these changed. There is ample space for work on the concrete area, and the separation from the asphalt road ensures that work can be done without disruption while cars, forklifts and trucks pass by.

Nordsoekaj 15A3766 Web

Maritime service companies along the quay

You will find experts in trawl making and electronics on Nordsøkaj at the Port of Thyboron. Electronics companies with more than 45 years of experience and world-leading trawl manufacturers, seine makers and trawl shovel manufacturers are based here.

Lokale services til fiskeriet
Nordsoekaj 0041 Web

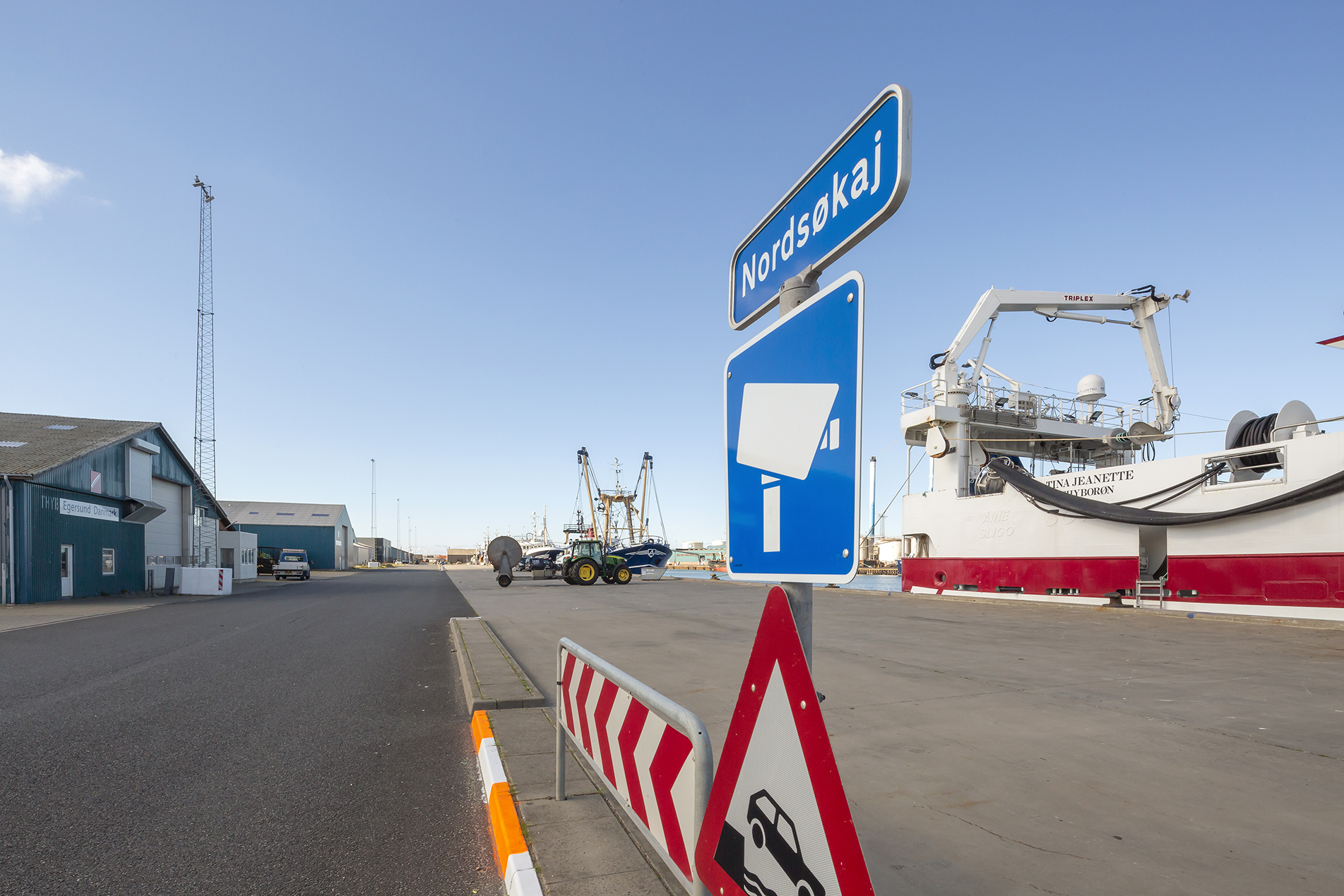

Nordsoekaj 15A3775 Web

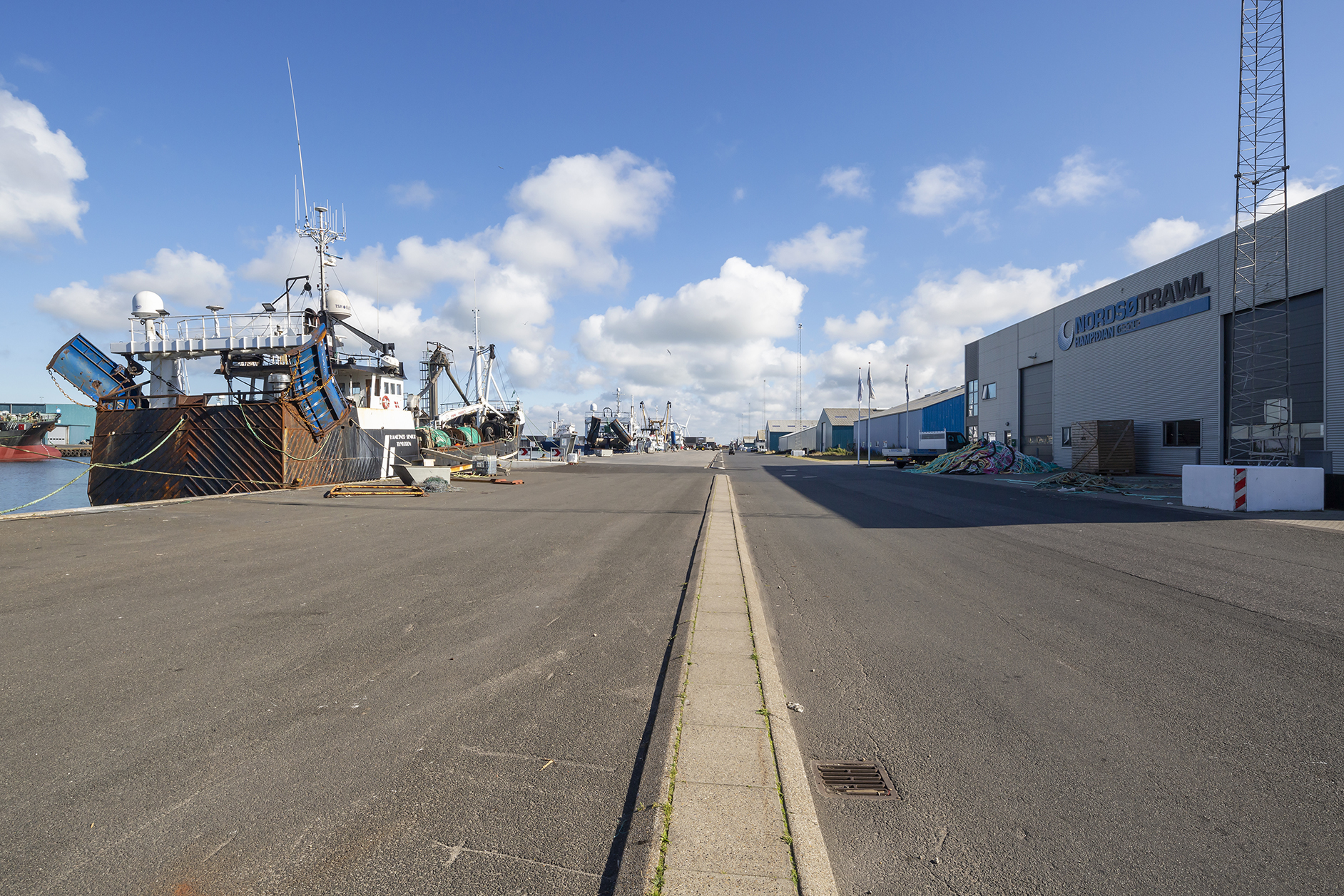

Nordsoekaj 15A3795 Web
Nordsoekaj 0016 Web
Nordsoekaj 0041 Web
Nordsoekaj 15A3766 Web

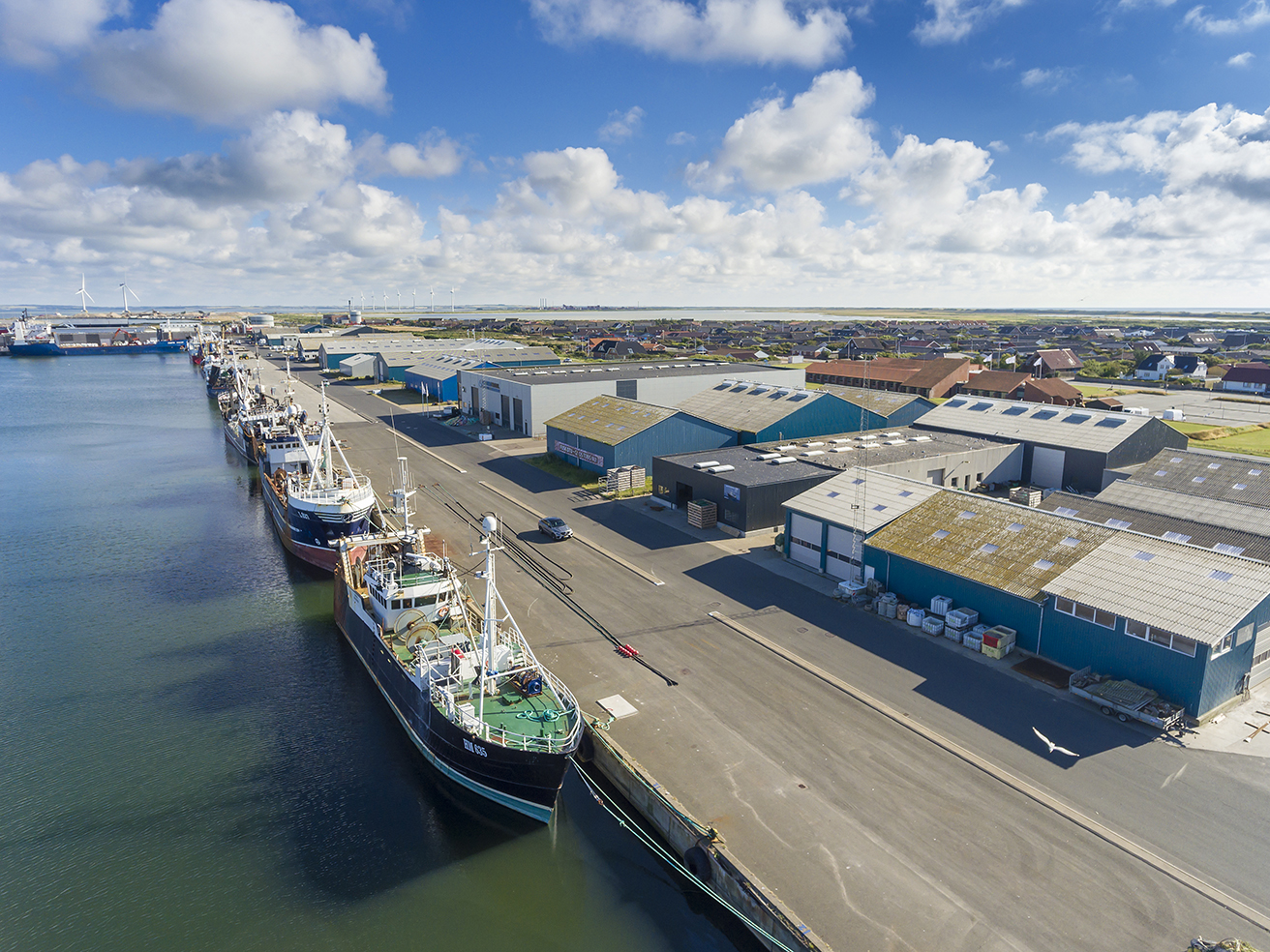

Nordsoekaj 0026 Web

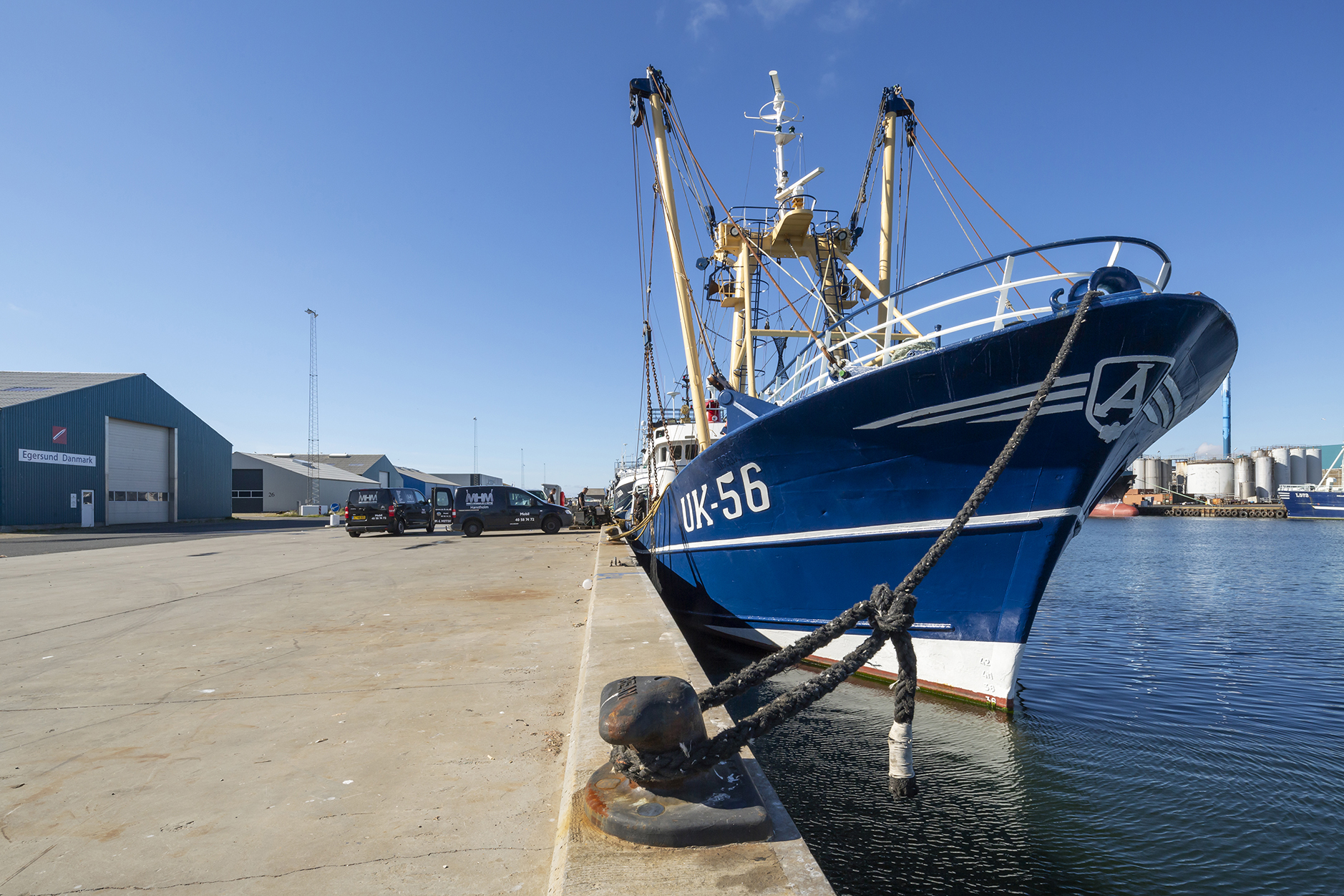

Nordsoekaj 15A3763 Web
Nordsoekaj 15A3749 Web

Technical Data - Nordsøkaj

Berth number

Berth 1
900
Berth 2
901*
Berth 3
1021
Berth 4
1022
Berth 5
1023

Navigation

Water depth, m, (LAT)
8,8
Water depth, berth 1021 - 1023, m, (LAT)
8,8
Water depth, berth 901 (150 m length), m, (LAT)
4,8
Port entrance corridor, m
75,8
Currents, kn
0

Quay facility specifications

Dimensions

Quay length, m
400
Quay length, berth 1021-1023
340
Quay length, berth 901, m
60
Quay width, m
15
Quay wall, berth 1021-1023, m
2,15
Quay wall, berth 901, m
1,7
Capping beam width, m
0,7

Capacity

Bearing capacity, t per sqm
2
Bearing capacity, Berth 901, t per sqm
0,5
Distributet pressure, t per sqm
2
Distributet pressure, Berth 901, t per sqm
0,5
Outrigger pressure at 2X2 m plate, t
40
Outrigger pressure at 2X2 m plate, 2 m from quayside, t
80
Outrigger pressure at 4X2 m plate, t
80
Axle load, t
12

Type

Quay type, Sheet pile wall
Surface type quay, concrete
Surface type quay, asphalt
Capping beam type, concrete

Service

Accessible for cranes
Accessibility for maritime service

History

Construction year
1975 / 2006 / 2015

Quay equipment

Supplies

Power supplies
Power stations on quay
8
Power connection point, 125 amp
Power connection point, 63 amp
Power connection point, 32 amp
Water supplies at quay
Wi-Fi, fiber connection
Bunkering at quay
Bunkering from barge
Bunkering capacity l/min
70-80

Safety

Safety ladders, quantity
17
Safety ladders, type Galvinized Steel
Distance between safety ladders, m
20
Safety point, quantity
3

Maritime equipment

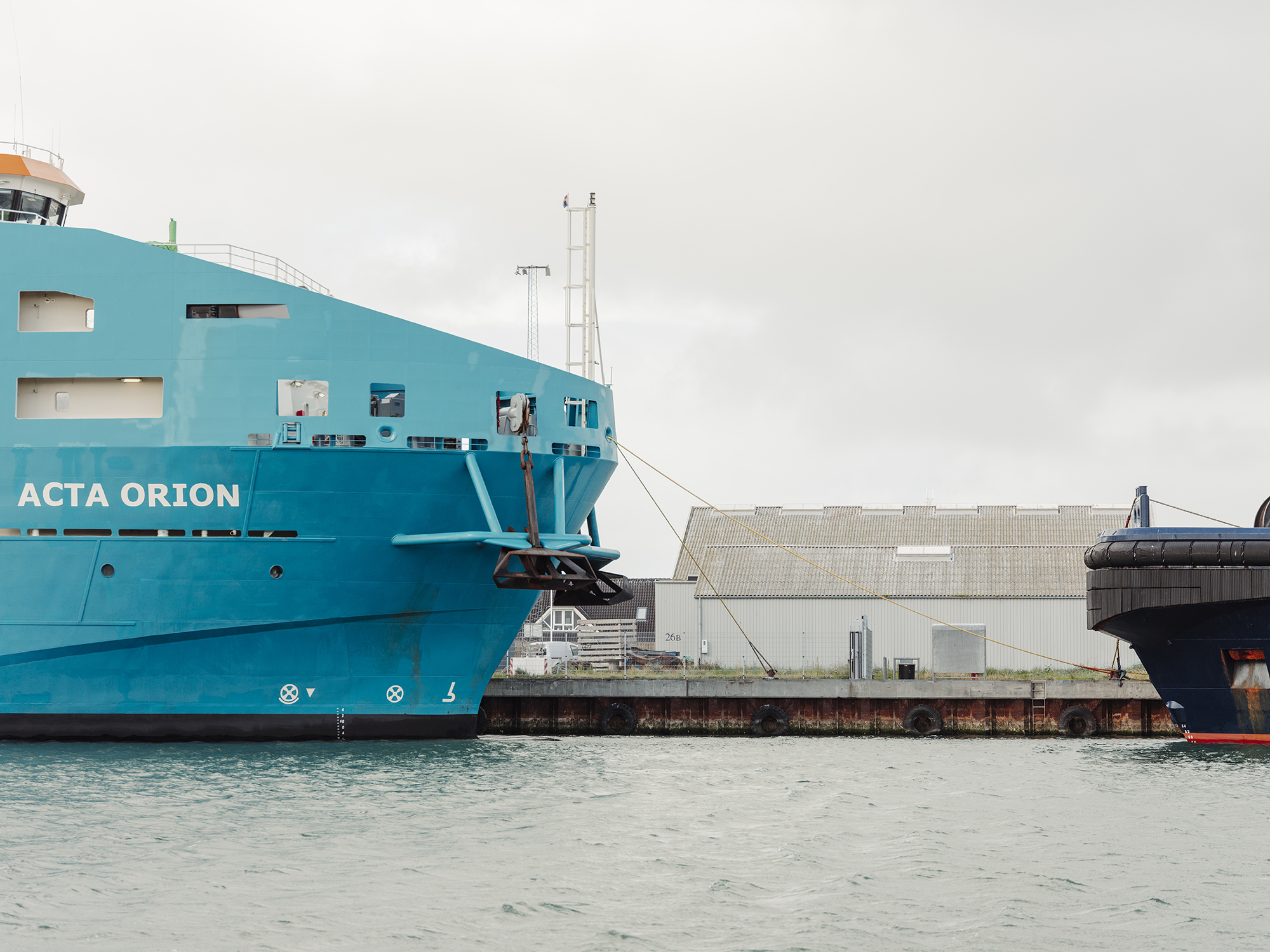

Fenders diametre, m
1,5
Fenders width, m
0,55
Distance between fenders, m
4
Bollard, quantity
16
Bollard type, bean
Bollard swl, capacity, t
20
Bollard swl, capacity, Berth 901, t
10
Distance between bollard, m
13
Bollard for pull test, numbers
1
Bollard for pull test, t
45

Environment

Slopoil disposal
Waste disposal
LED lightning, numbers
12
