Tobiskaj - DKTYB-0006 & DKTYB-0029
Quay 903, 904, 905
A multifunctional quay for handling fishing and cargo
Ample space and easy access to supplies
Lots of space for servicing the vessels in port, making the work considerably easier. Like so many places at the Port of Thyboron, there is also plenty of space on Tobiskaj. There is also easy access to electricity and water.

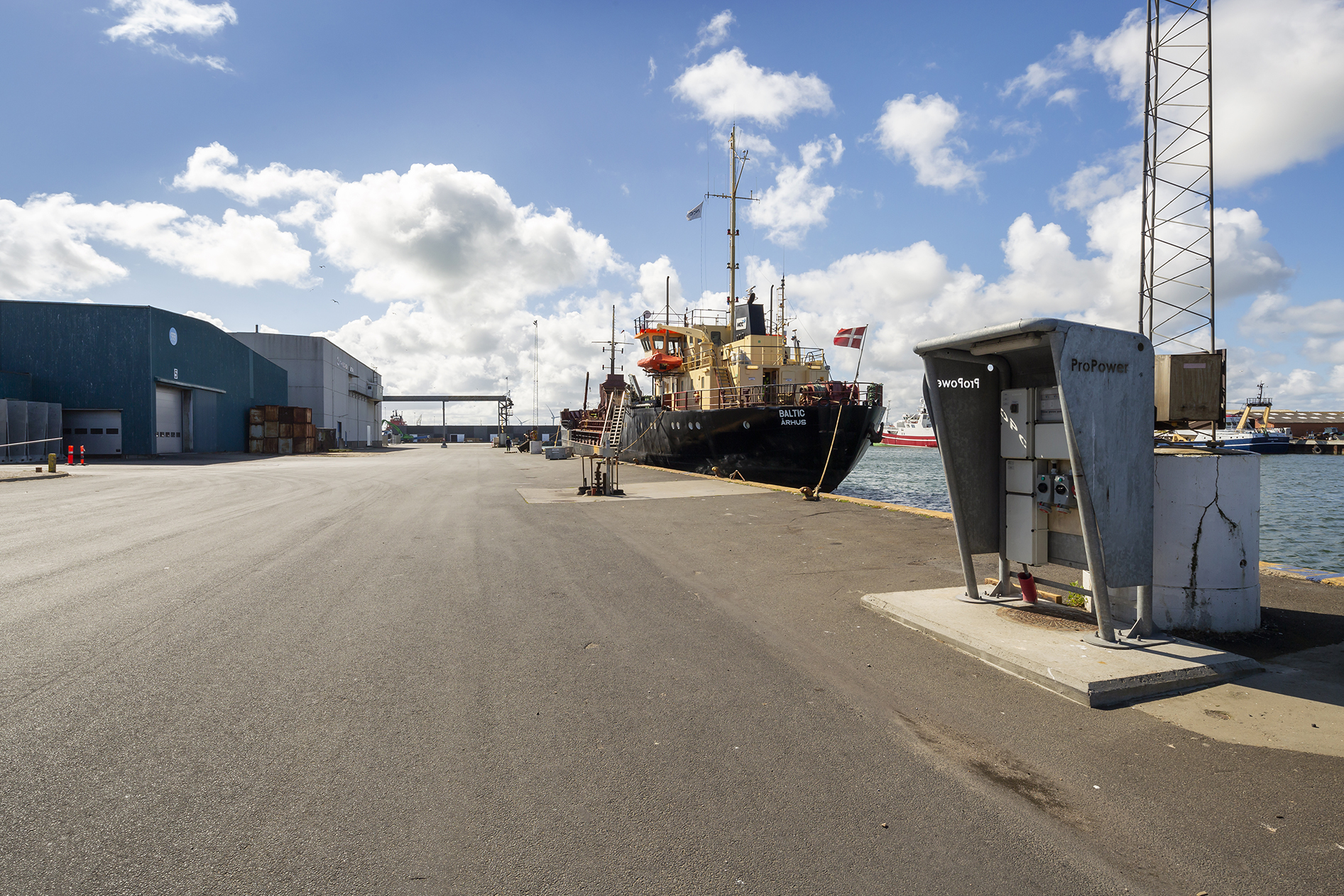

Power supplies
Part of the quay is ISPS compliant

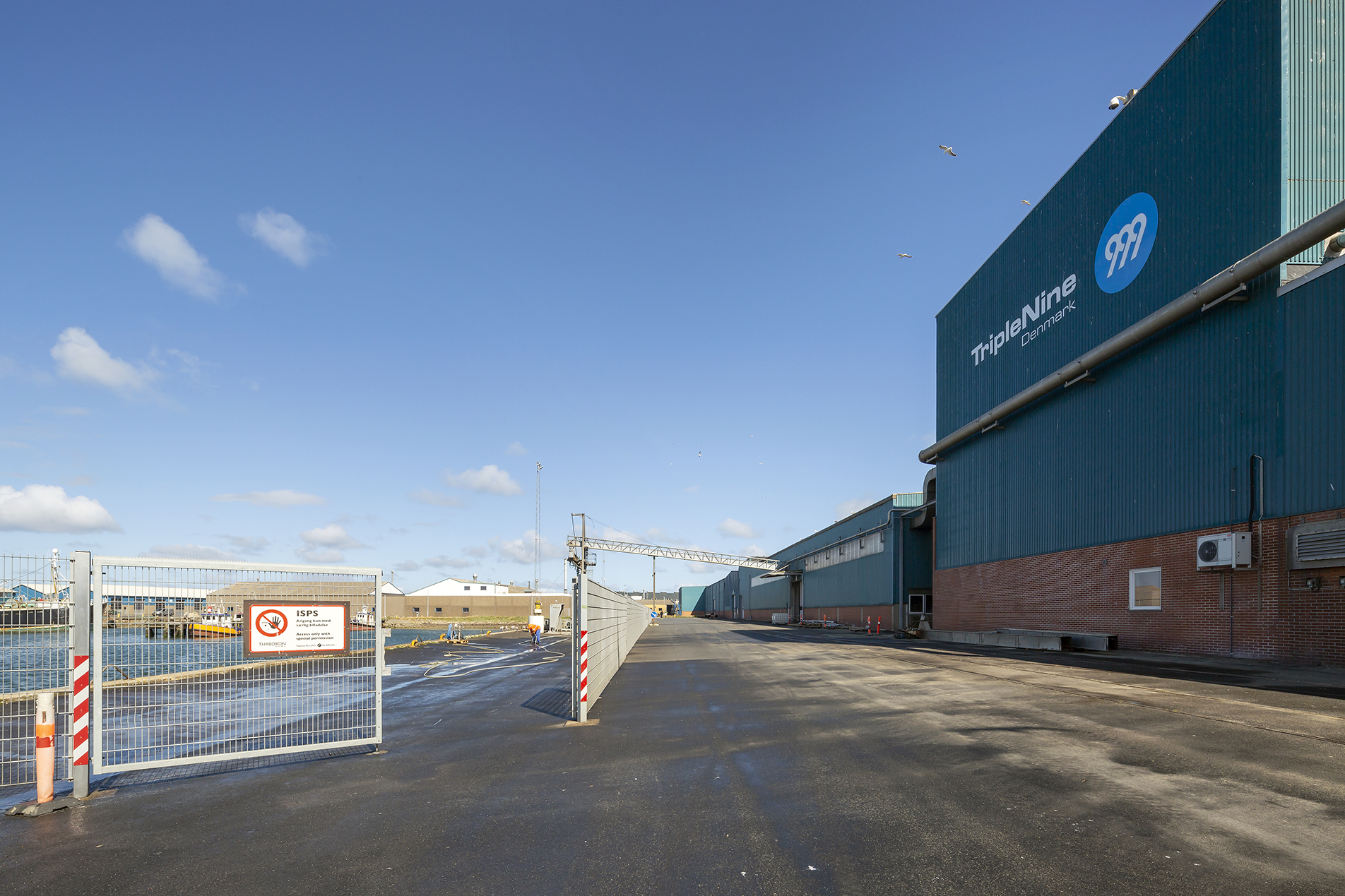

The innermost area at berth 903 is an ISPS secure area of Tobiskaj and thus suitable for handling bulk cargo.
Fiskemelsfabrik
Fishmeal loaded from Tobiskaj

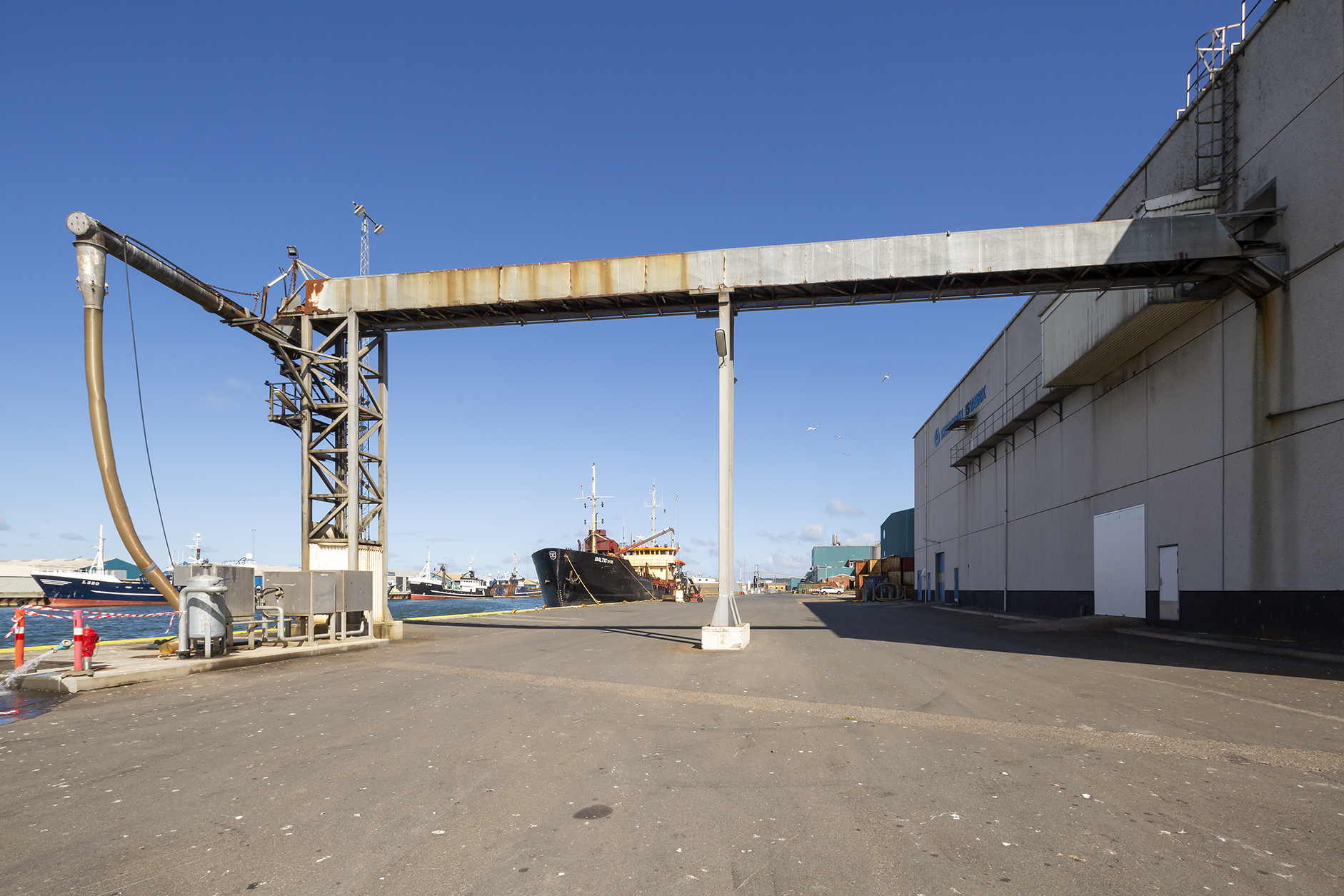

Fishmeal is shipped from Tobiskaj via a custom-designed system that directly loads vessels from the quayside factory warehouse at TripleNine A/S.
The TripleNine A/S fishmeal and fish oil factory has direct access to loading finished products in the ISPS area on Tobiskaj.
The quality-assured fishmeal is pumped directly into the ship during loading. An efficient logistical solution requiring no extra handling.

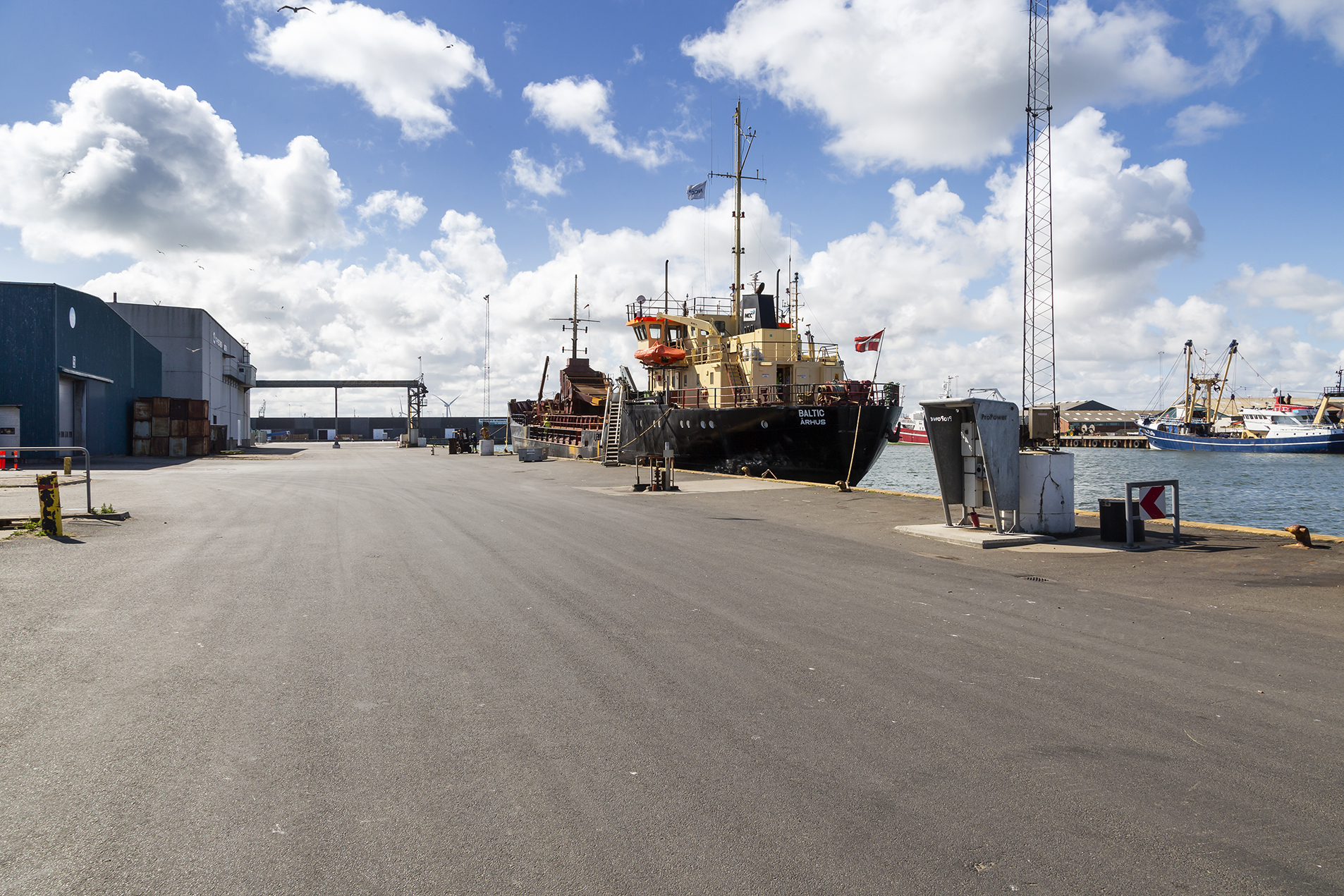

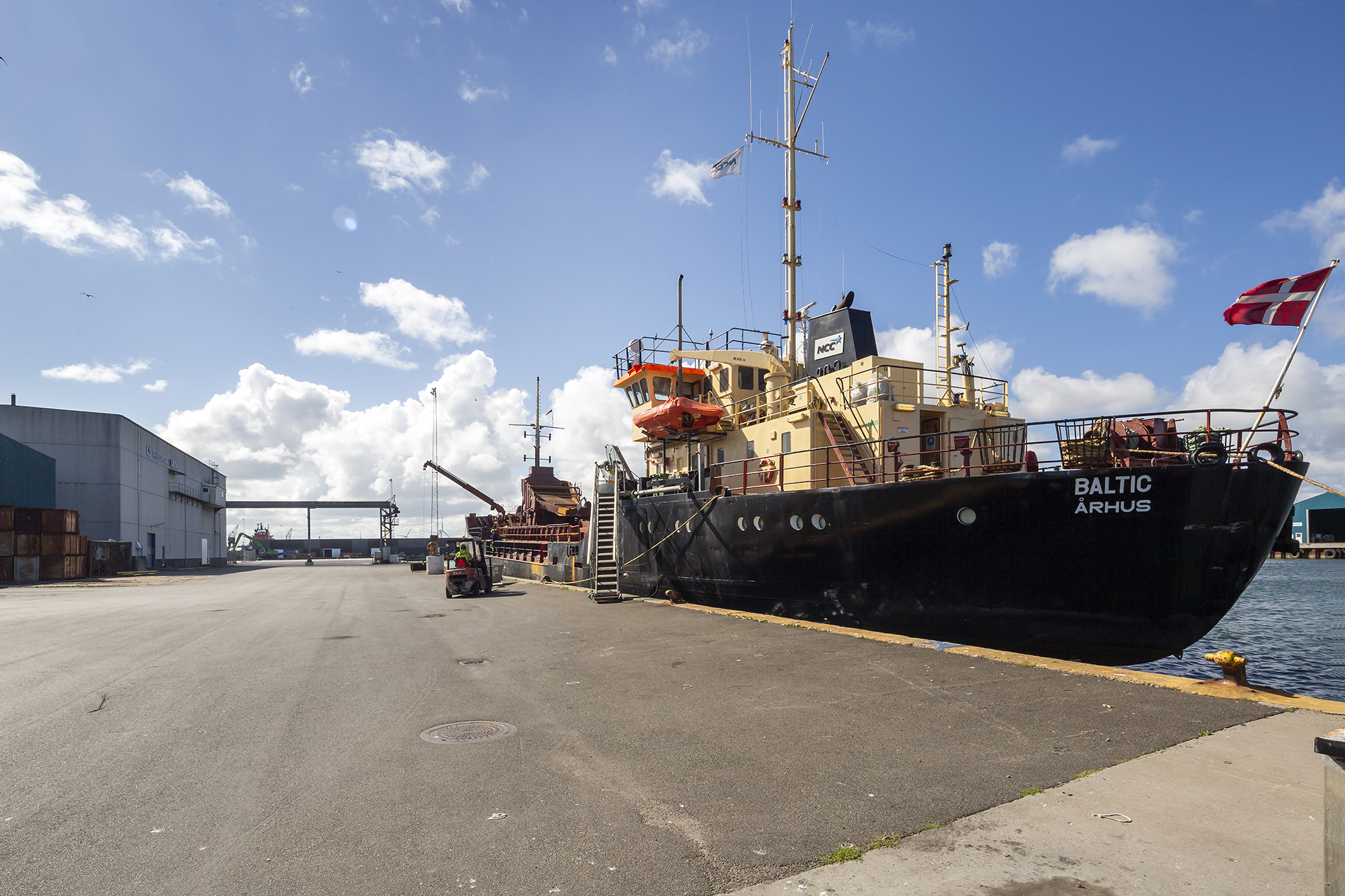

Layover quay for fishing vessels
Tobiskaj offers ample space for vessels waiting in port, such as transit fishing vessels laying over for the weekend.
Bunkering
Tobiskaj is equipped with a self-service stand with a bunker capacity of 600 l/min. The bunker capacity can be increased to 1,500 l/min by connecting three-inch hoses to the stand with assistance from Malik Energy A/S, or via bunker ships that deliver fuel to wherever the vessel is berthed.
Malik Energy A/S
Ice piped in
It is easy for industrial fishing vessels to re-fill ice from Thyborøn Isværk, the quayside ice works operated by Claus Sørensen Gruppen A/S.
Technical Data - Tobiskaj
Berth number
- Berth 1
- 903
- Berth 2
- 904
- Berth 3
- 905
Navigation
- Water depth, berth 903, 904 m, (LAT)
- 5,8
- Water depth, berth 905 (60 m length), m, (LAT)
- 8
- Port entrance corridor, m
- 75,8
- Currents, kn
- 0
Quay facility specifications
Dimensions
- Quay length, m
- 360
- Quay width, m
- 15
- Quay wall in m
- 1,65
- ISPS gate, width, m
- 8 m plus 5 m
Capacity
- Bearing capacity, t per sqm
- 2
- Distributet pressure, t per sqm
- 2
- Outrigger pressure at 2X2 m plate, 2 m from quayside, t
- 80
- Outrigger pressure at 4X2 m plate, t
- 80
- Axle load, t
- 10
Type
- Quay type, Sheet pile wall
- ✓
- Capping beam type, concrete
- ✓
- Capping beam width, m
- ISPS
- ✓
- Surface type quay, asphalt
- ✓
Service
- Accessibility for maritime service
- ✓
- Accessible for cranes
- ✓
History
- Construction year
- & 2006
Quay equipment
Supplies
- Power supplies
- ✓
- Power stations on quay
- 2
- Power connection point, 63 amp
- ✓
- Power connection point, 32 amp
- ✓
- Water supplies at quay
- ✓
- Water hydrants on quay
- 1
- Water feed capacity, tons or m3 per hour
- Ice supplies
- ✓
- Wi-Fi, fiber connection
- ✓
- Bunkering at quay
- ✓
- Bunkering from barge
- ✓
- Bunkering capacity l/min
- 1500
- Bunkering capacity per barge, m3
- 70-80
- Slopoil disposal
- ✓
- Waste disposal
- ✓
Maritime equipment
- Fenders diametre, m
- 1,3 - 1,5
- Fenders width, m
- 0,55
- Distance between fenders, m
- 6
- Bollard, quantity
- 41
- Bollard type, bean
- 1
- Bollard swl, capacity, t
- 30
- Distance between bollard, m
- 5-12
Safety
- Safety ladders, quantity
- 21
- Safety ladders, type Galvinized Steel
- ✓
- Distance between safety ladders, m
- 14
- Safety point, quantity
- 2
Environment
- LED lightning, numbers
- 12
- LED lightning, capacity, w
- 2x150
- Waste disposal
- ✓
- Slopoil disposal
- ✓
Fishmeal being loaded from TripleNine A/S

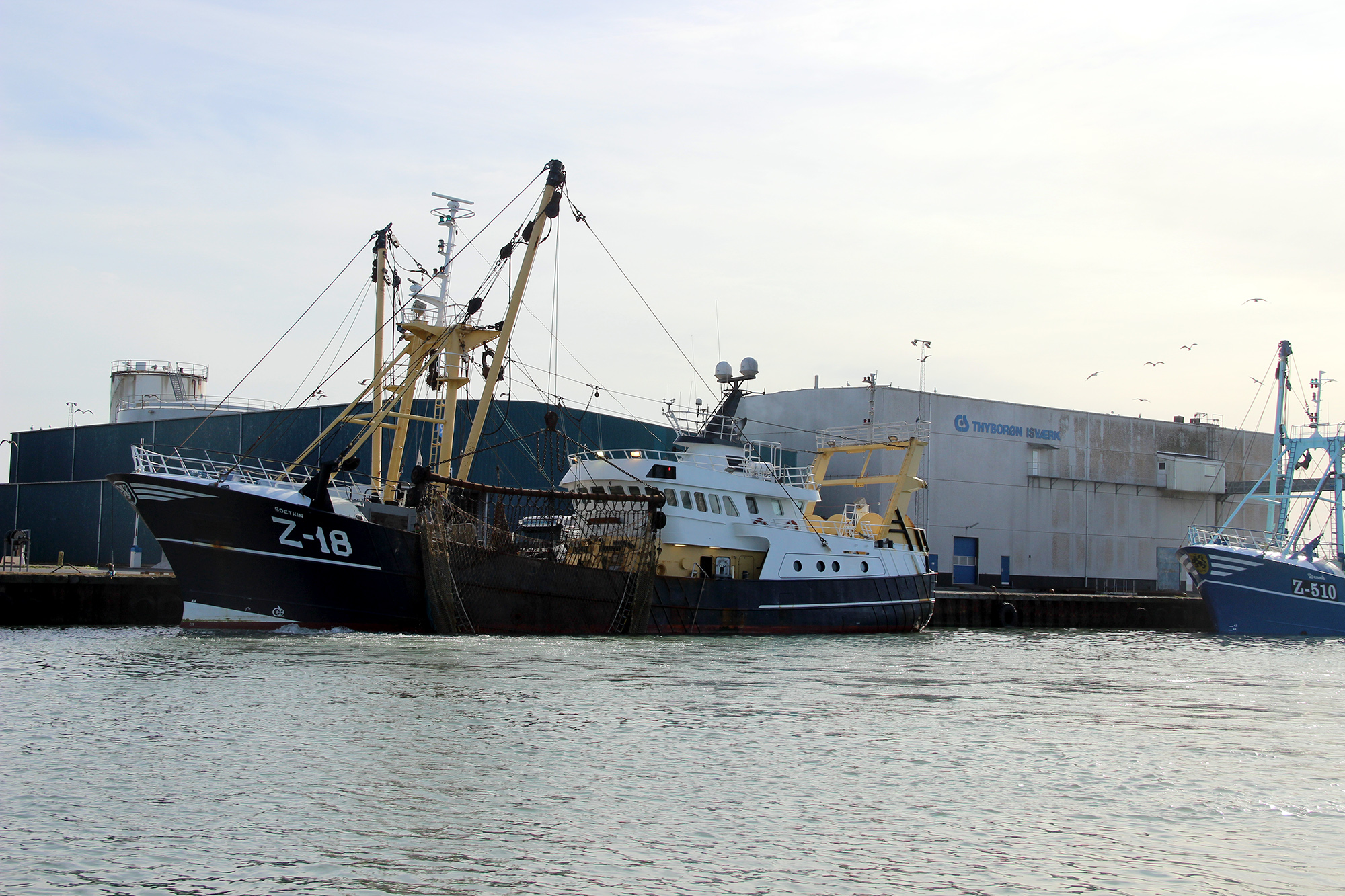

Layover quay for Belgian and Dutch transit fishermen
