Værftkaj - DKTYB-0005
Quay 1009, 1010, 1011
Quay offering maritime services
Værftkaj is adjacent to the four-track slipway at the Port of Thyboron. It has six metres of water depth, and is used extensively for maritime services by offshore supply vessels and fishing vessels. Fleet coordinators arrange for their vessels to be surface treated and painted here.
Dancoat, a company specialising in surface coatings for ships, is located right beside Værftkaj, so its stocks are near at hand as it does its work.
There is space to work without disruptions and easy access to supplies at the quay.
Maritime services from quayside companies
Værftkaj is located in the shipyard basin. The slipway is adjacent to the quay, and there are maritime service companies specialising in painting and surface coatings near at hand.

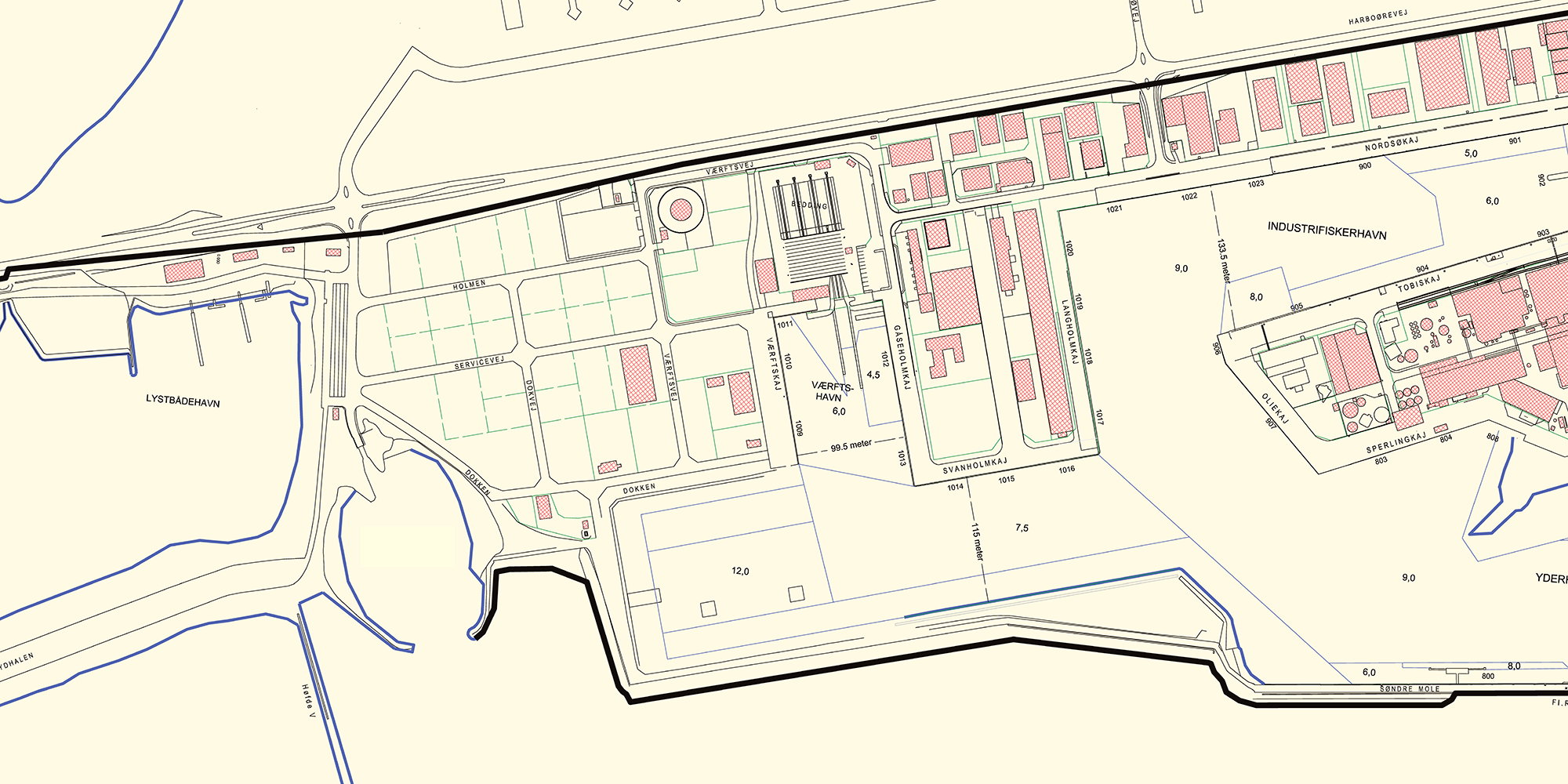

There are vacant building plots available in the area south of Værftkaj for companies that provide maritime services to shipping.
Space to work without disruptions
The Port of Thyboron is a commercial port where you get space to work without disruptions, and Værftkaj is no exception. There is ample space to focus on doing professional work.
Paint and surface coatings
Companies specialising in painting and surface coatings are located close to Værftkaj. Numerous vessels receive a makeover here every year.
See contact information for surface coating experts:
Technical Data - Værftkaj
Berth number
- Berth 1
- 1009
- Berth 2
- 1010
Navigation
- Water depth, m, (LAT)
- 6
- Port entrance corridor, m
- 75,8
- Currents, kn
- 0
Quay facility specifications
Dimensions
- Quay length, m
- 130
- Quay width, m
- Quay wall in m
- 2
Capacity
- Distributet pressure, t per sqm
- 2
- Axle load, t
- 7,5
- Outrigger pressure at 2X2 m plate, 2 m from quayside, t
- 80
- Outrigger pressure at 4X2 m plate, t
- 80
Type
- Surface type quay, asphalt
- ✓
- Capping beam type, concrete
- ✓
- Capping beam width, m
- 0,9
- Quay type, Sheet pile wall
- ✓
Service
- Accessibility for maritime service
- ✔
- Accessible for cranes
- ✔
History
- Construction year
- 1988
Quay equipment
Safety
- Safety ladders, quantity
- 10
- Safety point, quantity
- 3
Supplies
- Power supplies
- ✓
- Power stations on quay
- 1
- Power connection point, 350 amp
- ✓
- Power connection point, 125 amp
- ✓
- Power connection point, 63 amp
- ✓
- Power connection point, 32 amp
- ✓
- Water supplies at quay
- ✓
- Water hydrants on quay
- 1
- Bunkering at quay
- ✓
- Bunkering from barge
- ✓
- Bunkering capacity l/min
- 1500
- Bunkering capacity per barge, m3
- 70-80
Maritime equipment
- Fender type
- 23-5
- Fenders diametre, m
- 1,5
- Fenders width, m
- 0,6
- Distance between fenders, m
- 10
- Bollard, quantity
- Bollard swl, capacity, t
- 30
- Distance between bollard, m
Environment
- LED lightning, numbers
- 3
- LED lightning, capacity, w
- 3 X 150
- Wi-Fi, fiber connection
- ✓
- Waste disposal
- ✓
- Slopoil disposal
- ✓
Service
- Accessibility for maritime service
- ✓
- Accessible for cranes
- ✓
Hinterland at the quayside
Dimensions
- Onshore area at quayside, sqm
- 1400

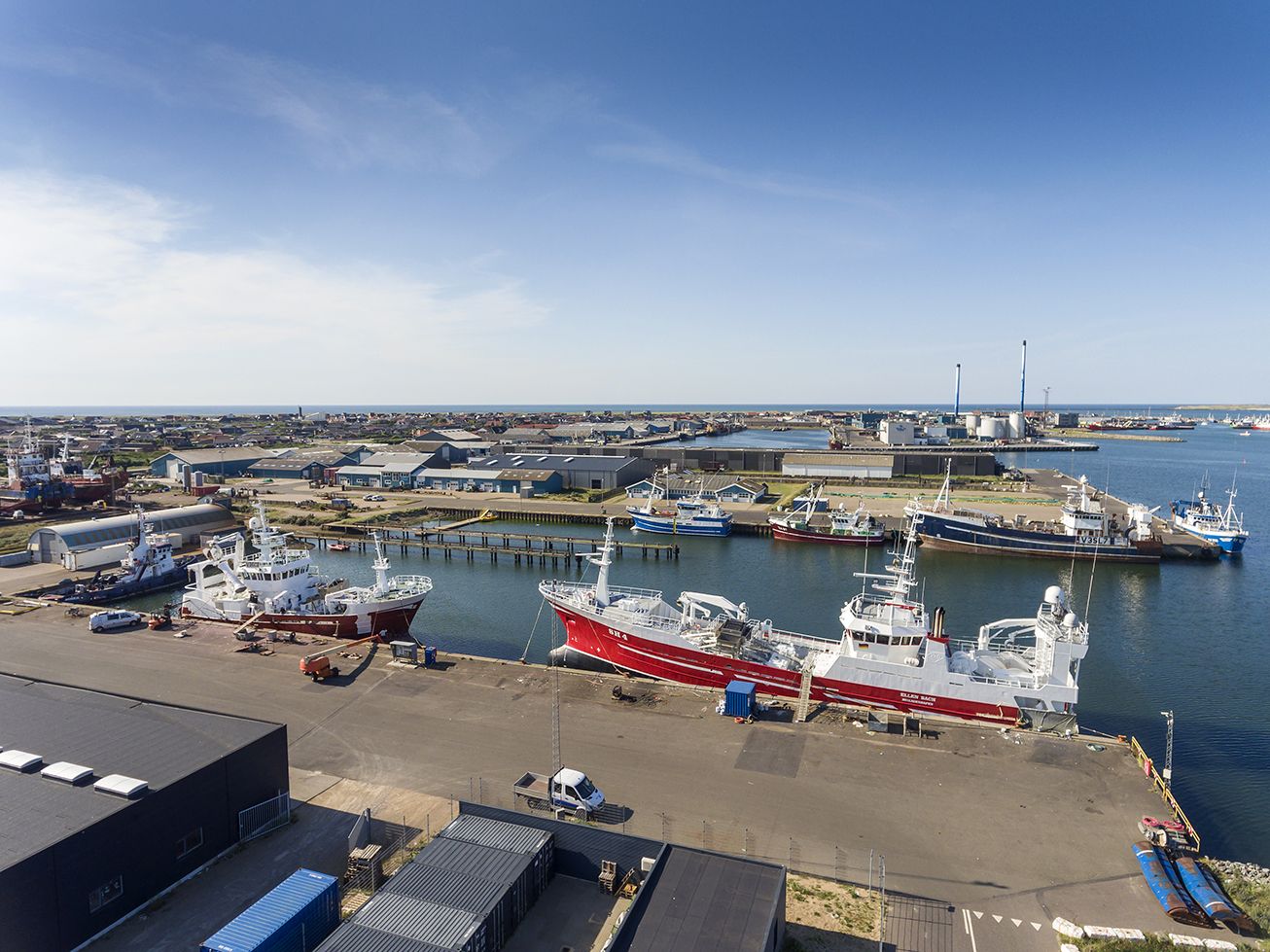

A fishing vessel being painted

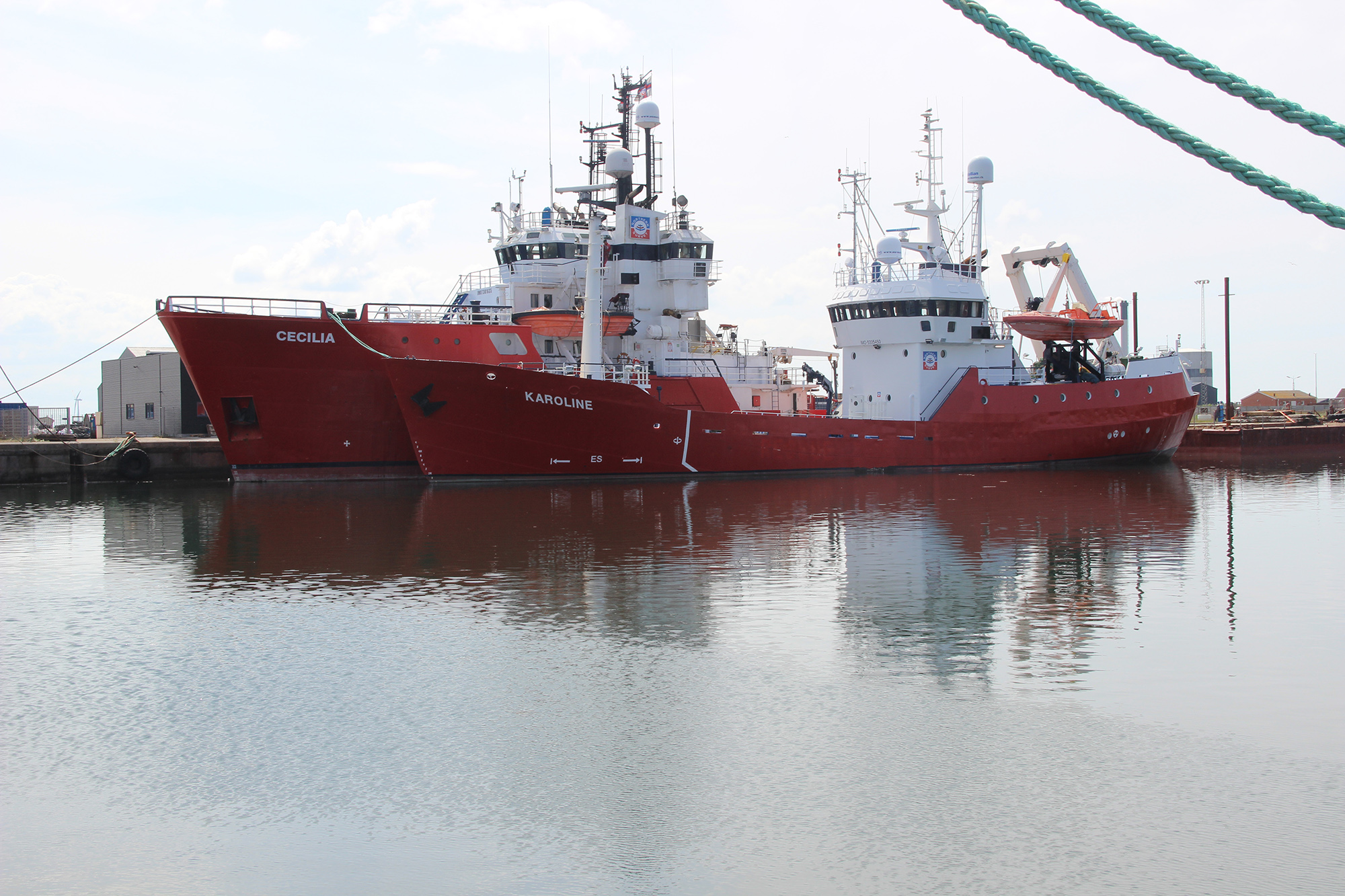

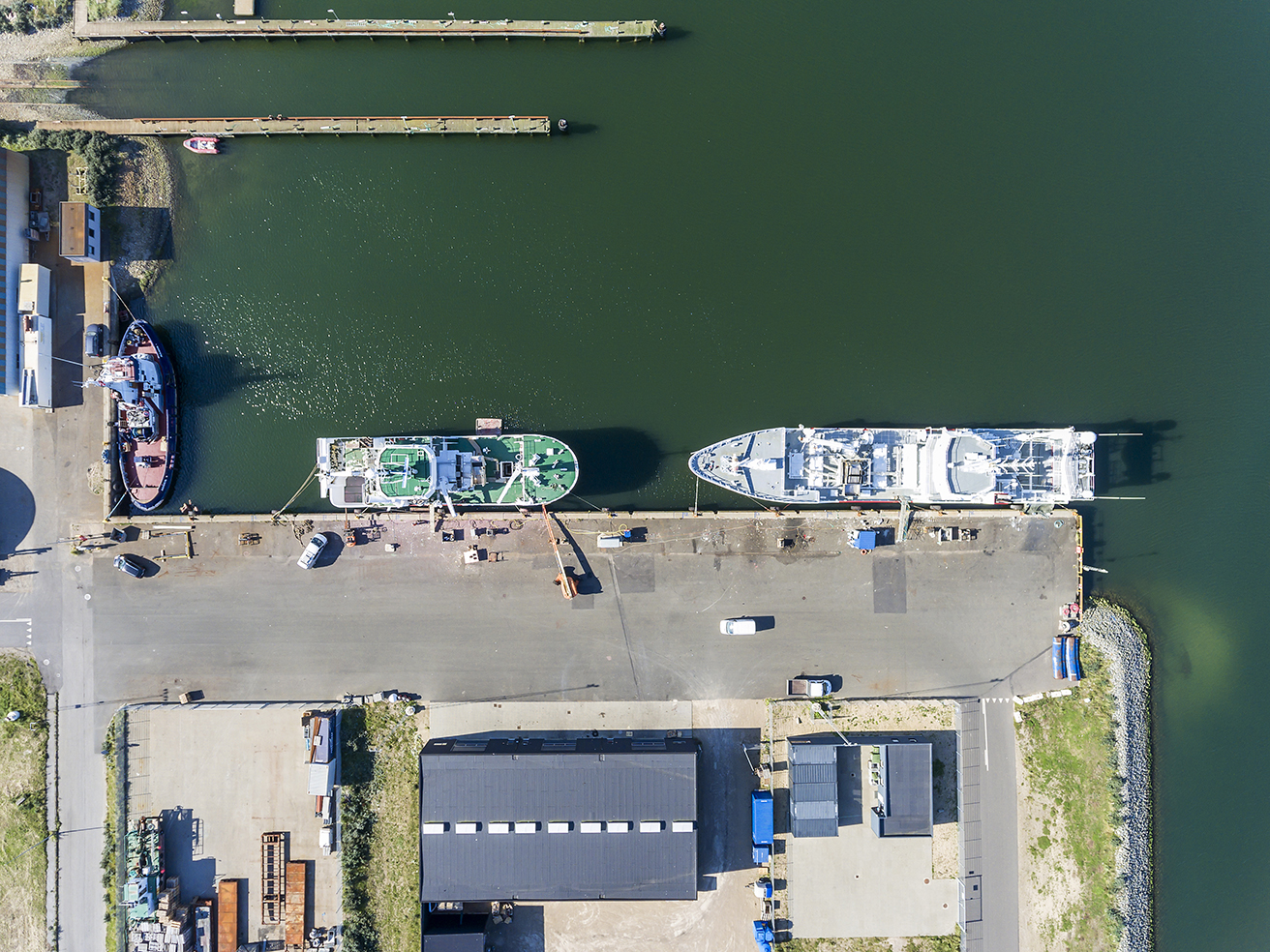

Offshore vessels Franklin and Cecilia berthed at Værftkaj

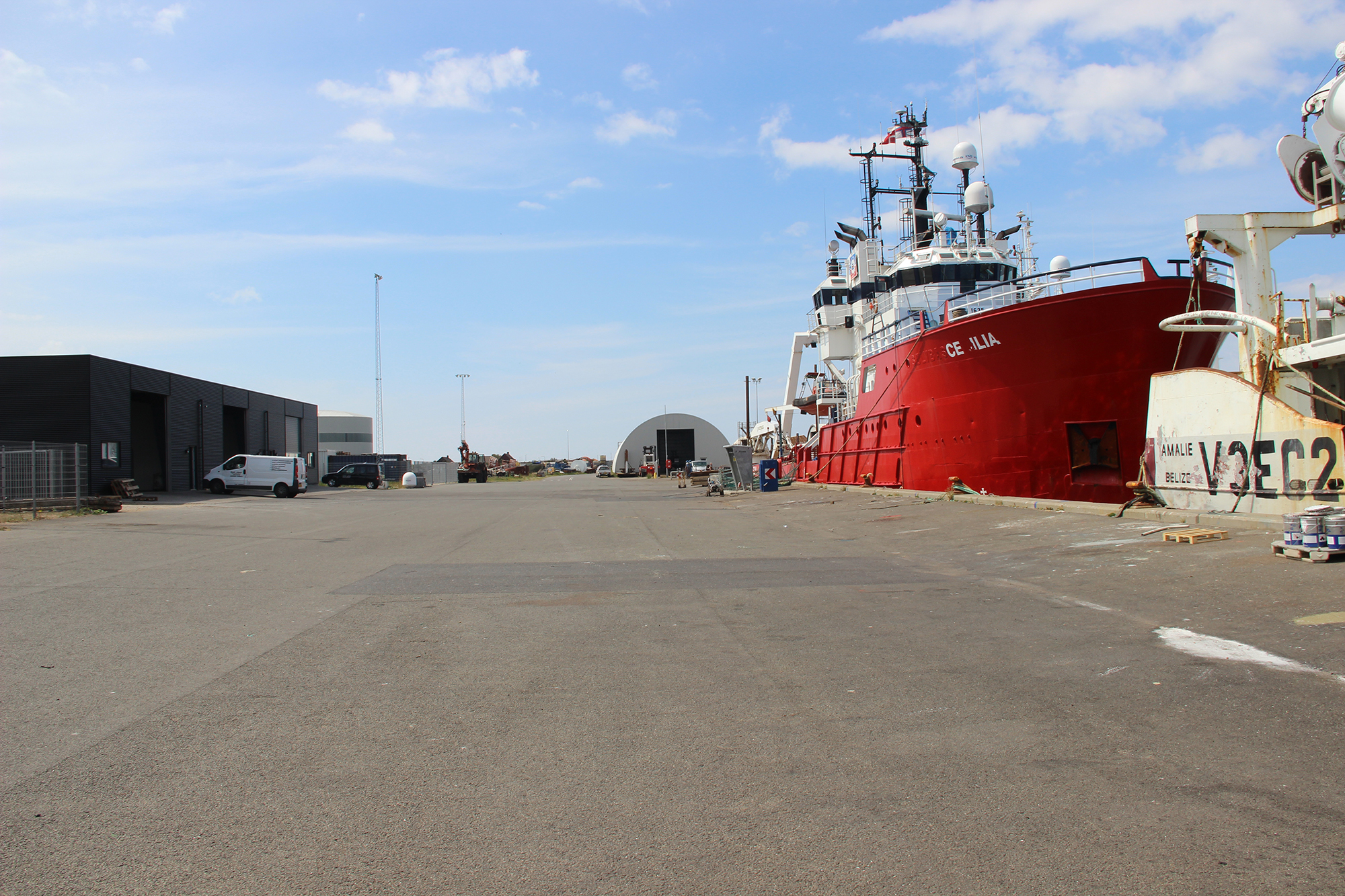

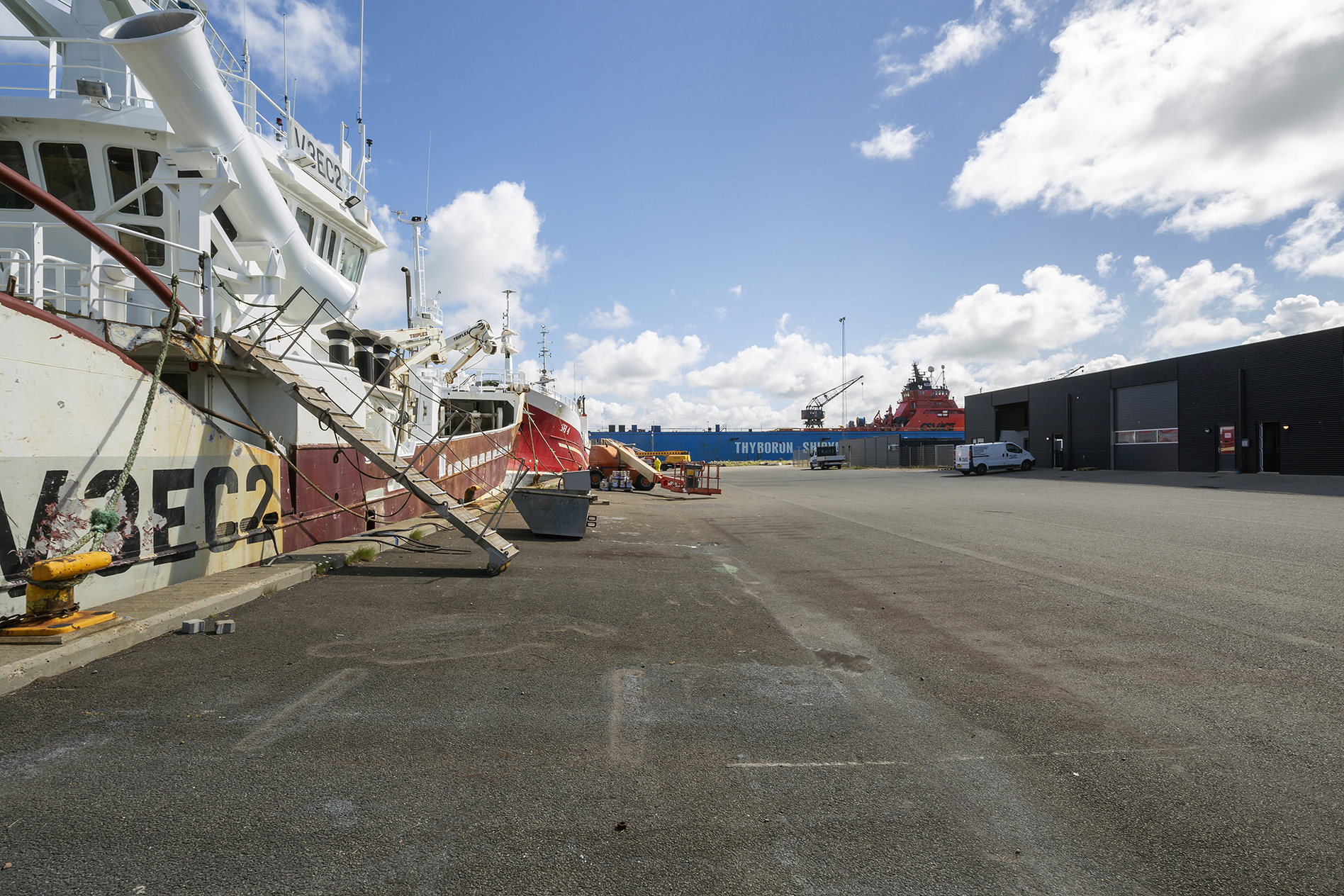

Plenty of working space beside Cecilia at Værftkaj
